X-RAY
adm-10a
HIGH FREQUENCY DENTAL X-RAY
FEATURES
International level high frequency technology
Automatic protective measures
Stable voltage on both sides of the X-ray tube during exposure
More effective radiation makes the imaging efficiency greatly improved
Good image quality
Fewer soft X-ray and stray radiation during exposure, no damage to users
Smart and stable structure, modern design
SPECIFICATIONS
Power supply: AC 220V ± 10%
Frequency: 200kHz
Tube voltage: 70Kv
Tube current: 8mA
Focus size: 0.8mm
Total filtration: 2.5mmAL
Exposure time: 0.02 - 4sec
Leak radiation: Outside one meter ≤0.002mGy/h
adm-10b
DENTAL X-RAY
FEATURES
The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
The control panel allows on accurate and fast exposure time selection while protecting the head during X-ray examinations.
Fitted with 60kVp 8mA tube with preheating grid. The machine has been specially designed for intra-oral dental diagnosis applications.
Compiles with local and international regulations on ionizing radiation protection for maximum safety.
The soft positioner arm ensures naturally smooth and well-balanced movements. It is easy installed at the desired height and length.
Its ergonomics and design have been studied to meet the requirements of the most demanding practices in matters of floor space optimization
SPECIFICATIONS
Classification: Electrometrical, Class I, Type B
Power supply: 220V±10%, 50Hz, 1kVA or AC110V±10%,50/60HZ
Tube voltage: 60KVp
Tube current: 8mA
Focus size: 1.5mm
Total filtration: 2.5mmAL
Exposure time: 0.2 to 4 sec
Leak radiation: Outside one meter ≤0.002mGy/h
Focus size: 0.8mm

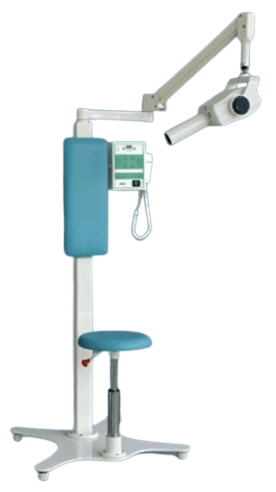

adm-10D
DENTAL X-RAY
FEATURES
The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
The control panel allows on accurate and fast exposure time selection while protecting the head during X-ray examinations.
Fitted with 60kVp 8mA tube with preheating grid. The machine has been specially designed for intraoral dental diagnosis applications.
Compiles with local and international regulations on ionizing radiation protection for maximum safety.
The soft positioner arm ensures naturally smooth and well-balanced movements. It is easy installed at the desired height and length.
Its ergonomics and design have been studied to meet the requirements of the most demanding practices in matters of floor space optimization
SPECIFICATIONS
Classification: Electrometrical, Class I, Type B
Power supply: 220V±10%, 50Hz, 1kVA or AC110V±10%, 50/60HZ
Tube voltage: 60KVp
Tube current: 8mA
Focus size: 1.5mm
Total filtration: 2.5mmAL
Exposure time: 0.2 to 4 sec
Leak radiation: Outside one meter≤0.002mGy/h
Focus size: 0.8mm

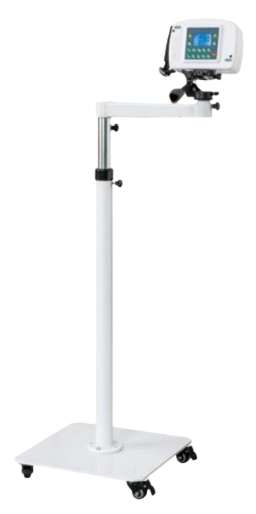

adm-10P Mobile
MOBILE HIGH FREQUENCY DENTAL X-RAY
FEATURES
The body is small, lightweight and nearly no radiation.
It has excellent image quality, portable storage, save more space.
It uses high frequency and DC international power supply.
All of the components installed in the central PC board concentrated.
There are also manual buttons installed on the surface of shell, as well as batteries and charges.
This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on is indispensable in daily life clinic equipment, especially for dental implant surgery.
It can connect with sensor.
SPECIFICATIONS
Frequency: 32KHZ
Tube voltage: 60KV
Tube current: 1.5mA
Exposure time: 0.02-4sec
Distance from skin to cone: 130mm
Tube focus: 0.3mm*0.3mm
Output voltage: DC16.8V
Battery: DC14.8V, 6400mAh
Leak radiation: Outside one meter≤0.002mGy/h
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Optional color: grey, pink, light green
ADM-10P Mobile X-ray Machine is with remote control exposure function
adm-10P HANDHELD
HIGH FREQUENCY DENTAL X-RAY
FEATURES
The body is small, lightweight and nearly no radiation.
It has excellent image quality, portable storage, save more space.
It uses high frequency and DC international power supply.
All of the components installed in the central PC board concentrated.
Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on is indispensable in daily life clinic equipment, especially for dental implant surgery.
It can connect with sensor.
SPECIFICATIONS
Frequency: 32kHZ
Tube voltage: 60kV
Tube current: 1.5mA
Exposure time: 0.02-4sec
Distance from skin to cone: 130mm
Tube focus: 0.3 X 0.3mm
Output voltage: 16.8Vdc
Battery: 14.8Vdc, 6400mAh
Leak radiation: Outside one meter ≤0.002mGy/h
Ambient temperature: 5 ~ 40℃
Relative temperature: <75%RH
Optional color: grey, pink, light green
adm-3000A
DENTAL CONE BEAM COMPUTED TOMOGRAPHY SYSTEM
cLINICAL APPLICATIONS
Oral and maxillofacial cone beam computed tomography equipment (dental CT) with 12 X 15cm flat panel detector, can be widely used in oral and maxillofacial surgery, orthodontics, orthognathic surgery, implant, dental, temporomandibular joint, Preoperative and postoperative.
SPECIFICATIONS
Using the world’s top high-end flat panel detector, high resolution, small distortion, uniform brightness.
Use exposure mode, only when needed to activate the X source. During the rotation of the 18s, the rays last only 4-8s. The effect of reducing the check dose, reached the international advanced level.
3000A proprietary three-dimensional reconstruction algorithm, the original two-dimensional sequence projection into a three-dimensional volume image, you can at any angle, any location to provide high-definition tomography.
Through the three-dimensional volume image extraction of oral panorama, can provide high-definition panoramic images.
The image can be used to generate reports, print or save as a report file.
Can support standing, sitting and wheelchair and various position.
